Front Side Lights - Side lamp 1130 type - Black body, chrome 'Toby' medallion
Side lamp 1130 type - Black body, chrome 'Toby' medallion

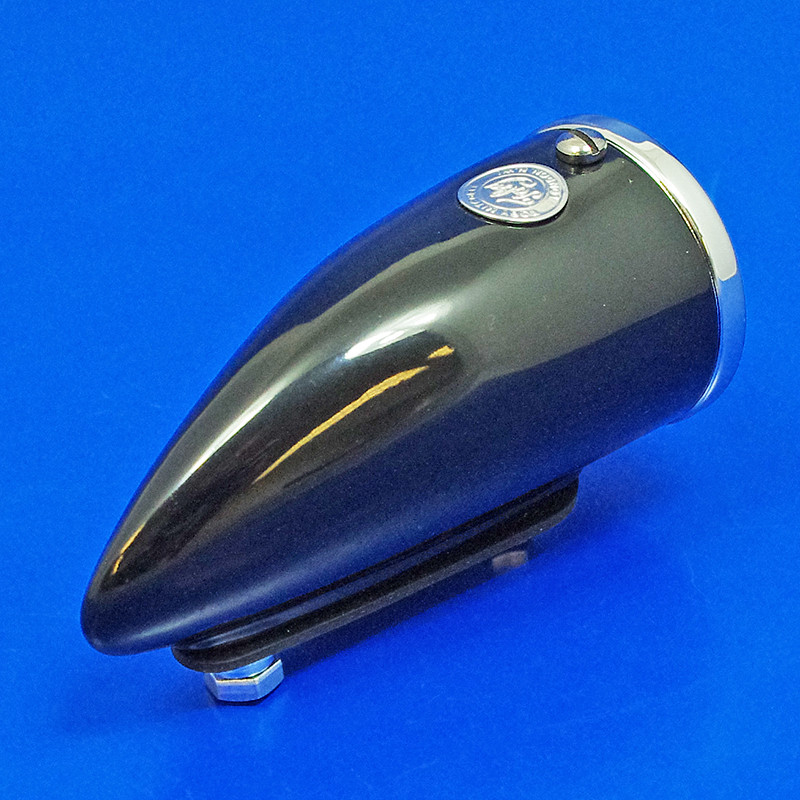

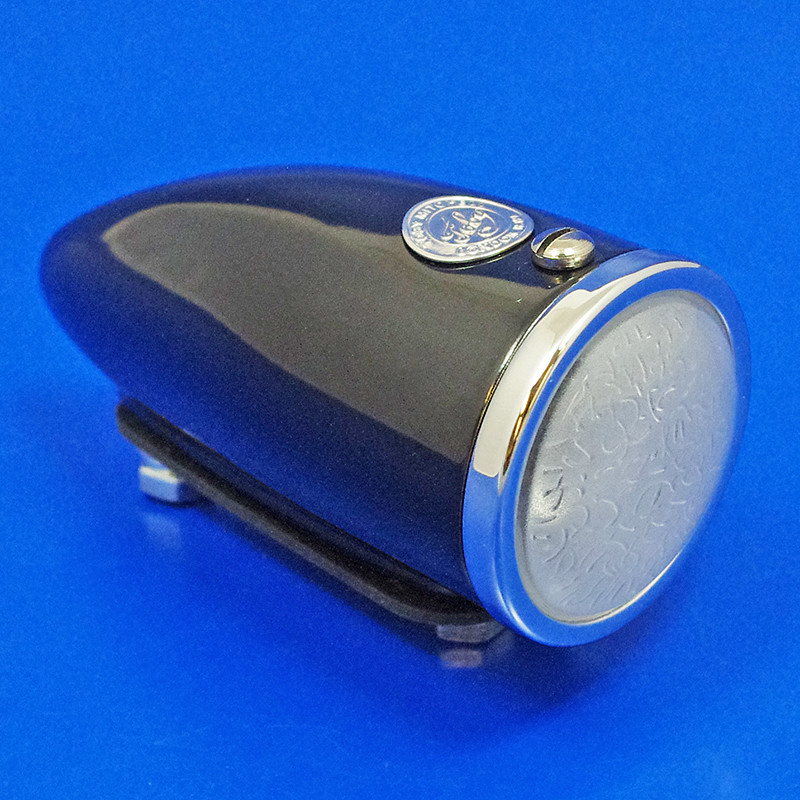

Streamline 'Torpedo' style side/wing lamp. A quality reproduction of the Lucas 1130 type side lamp, originally available with ebony black body and plated rim. Gloss black powder coated brass body approximately 100mm long x 46mm diameter. Frosted glass lens with chrome rim retained by screw in top. Mounted by two bolts in base. Rubber mounting pad supplied.
Fitted with chrome on brass 'Toby' medallion, as applied to our finest early lamp and mirror recreations. Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of selected early CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell's high-quality 'Toby' branded product range.

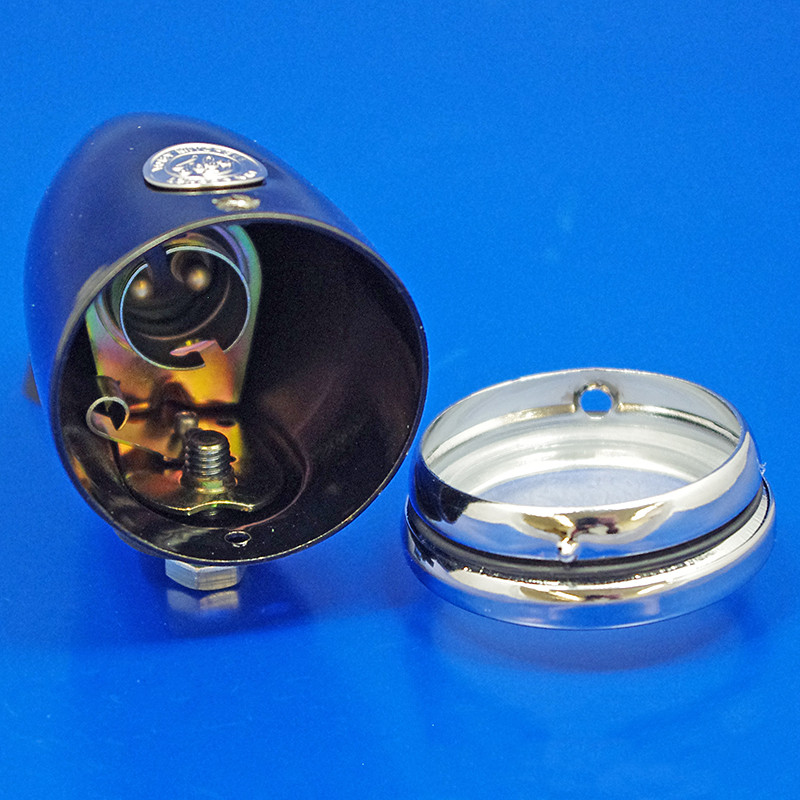

Double filament BA15D bulb holder. For side light only - order B206 (6V) or B209 (12V). The double contact bulb holder also allows a combined side and flasher bulb to be fitted. Please see new combined warm white or white/amber LED bulbs CSILEDWW and CSILEDW and electronic/LED flasher units LEDFLASH3 with 6, 12 +ve and -ve earth versions. Also see twin filament clear incandescent bulbs B383 (6V) and B381 (12V) for clear side and flasher function (US application).
Bulbs are listed as related products below.
We now also offer a Toby reproduction of the 1142 type side lamp originally made by Lucas, a pedestal mounted torpedo lamp that is larger than the 297/1130 type - available as a sidelamp 1142S or sidelamp/indicator 1142IND
