Fuel, Brake and Clutch Hose and Pipe

Stainless steel tube, Kunifer pipe, stainless steel braided TFE brake and clutch hose (with and without black PVC cover), fuel hose with neoprene cover or stainless braided outer, Acetylene and master cylinder gravity feed tube.
We can supply hose as a loose component for self-assembly by the customer with their chosen end fittings. We can also supply swaged brake, clutch fuel and oil hoses where a 'factory finish' is required. Hoses can be made in our workshop, or we can supply swaging parts for the professional mechanic/restorer with access to swaging equipment. We can also provide quotations from old patterns you may have. Please enquire regarding prices of our swaged hose services and please see the Help and Instructions section below for further information on each type of hose, TFE hose and fitting assembly, as well as specifying hoses if assembled units are required.

Specifying Hoses
Files


TFE Hose and Assembly
Files


Fuel, Brake, Clutch Hose and Pipe

Hose and Tube

Stainless steel tube – seamless and manufactured to ASTM A269 316

Neoprene fuel hose - single textile braid reinforcement and smooth black neoprene cover complies with British standard BS Au108/2-L4/C4/R for fuel hose. Designed for under bonnet use with push in fittings secured with worm drive clamps or similar fittings in smaller sizes i.e. Carburettor hoses, automatic transmission cooling.

Stainless Steel braided fuel hose - suitable for commercial fuels and fuel mixtures up to a maximum of 50% Benzol. Hose is suitable for E10. It is less bulky than the BS Au108 compliant hose above and has the same application..

Brake Fluid Resistant Hose -use for gravity feed to master cylinder from remote reservoir. Special rubber liner with black outer cover.

Kunifer seamless copper alloy tube - for brake lines where flexibility is not required. The tube may be bent by hand or using a tool where tighter radiuses are required. A flaring tool MUST be used to form seats. Mainly used for brake and clutch lines where, due to its small size,the weight penalty is not too significant. Also quite suitable for fuel and oil lines where weight is not a big issue.

Acetylene tubing - red rubber tubing 5mm bore with 1.5mm wall for acetylene gas burners.

TFE hose - Extruded Teflon tube with stainless steel single wire braid cover. A high pressure hose with excellent fluid compatibility and a stainless steel cover that is resistant to corrosion and abrasion. Due to its very low ratio of expansion to pressure, this hose has proved to be ideal for use on flexible lines in competition vehicle braking and clutch systems providing a desirable hard pedal with reduced travel. If subjected to continuous flexing the stainless-steel strands can eventually fracture and could penetrate the Teflon liner - vehicles should be regularly inspected for signs of wear.

Care must be taken in fitting to ensure that the hoses do not contact any moving part under conditions of extreme suspension travel and/or full steering lock. We do not offer any guarantee of their suitability for any purpose beyond usage on off road vehicles under conditions of regular inspection. No responsibility can be taken for any damage, injury or loss resulting from their use. Manufactured in the UK and compatible with Aeroquip and MOCAL fittings. Also offered with a black PVC skin for added protection and easy cleaning. Skin must be cut back to take fitting. For use with suitable reusable or swaged on fittings.

Understanding Hose Fittings and Sizes –

AN specification refers to ‘dash’ sizes, arrived at by multiplying the nominal bore of the hose by 16, hence ½” hose is -8. This Aeroquip system was extended to cover British hose and fittings. Most threads including JIC (now called SAE 37°) & Metric are defined by the outer diameter of the male thread. However, BSP and NPTF are defined by the bore of the hose they fit, hence a ½” BSP fitting fits a ½” hose. Adaptors are used to deal with variations.

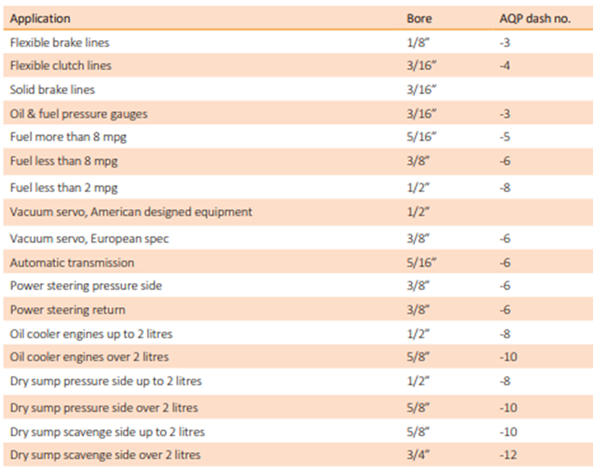

A guide to commonly used hose sizes

For engine oil cooler and dry sump applications where hose run is over 3 metres, go up a size.

Product Image

733-RED - Acetylene gas lamp tubing - 5mm ID, 8mm OD

From £7.28 (£8.74 inc. VAT @ 20%)

Red rubber acetylene tubing. 5mm inner diameter/bore with 1.5mm wall thickness. For acetylene gas burners.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

BFRH2 - Brake Fluid Resistant Hose 8mm ID

From £12.07 (£14.48 inc. VAT @ 20%)

Use for gravity feed to master cylinder from remote reservoir. Special rubber liner with black outer cover. 5/16"/7.9mm ID 0.56"/14.22mm OD - Zero burst pressure. Priced PER METRE

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

BFRH3 - Brake Fluid Resistant Hose 9.5mm ID

From £12.85 (£15.42 inc. VAT @ 20%)

Use for gravity feed to master cylinder from remote reservoir. Special rubber liner with black outer cover 3/8”/9.53mm ID 0.63"/16.00mm OD - Zero burst pressure. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

CA871 - Flexible pipe - 1/4" bore

From £2.72 (£3.26 inc. VAT @ 20%)

1/4'' (6mm) bore. Transparent reinforced flexible tubing. Use tail piece and `O' clips to secure.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

CA872 - Flexible pipe - 5/16" bore

From £3.01 (£3.61 inc. VAT @ 20%)

5/16'' (8mm) bore. Transparent reinforced flexible tubing. Use tail piece and `O' clips to secure.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

CA873 - Flexible pipe - 3/8" bore

From £3.36 (£4.03 inc. VAT @ 20%)

3/8'' (10mm) bore. Transparent reinforced flexible tubing. Use tail piece and `O' clips to secure.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

KBP1/4 - Seamless Brake Pipe

From £66.73 (£80.08 inc. VAT @ 20%)

1/4" OD Kunifer brake pipe 25 foot roll. Seamless copper alloy tube. Application - all brake lines where flexibility is not required. The tube may be bent by hand or using a tool where tighter...

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

KBP3/16 - Seamless Brake Pipe

From £33.35 (£40.02 inc. VAT @ 20%)

3/16" OD Kunifer brake pipe 25 foot roll. Seamless copper alloy tube. Application - all brake lines where flexibility is not required. The tube may be bent by hand or using a tool where tighter...

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

NFH1/4 - -4 (1/4" bore) fuel hose - neoprene cover

From £5.88 (£7.06 inc. VAT @ 20%)

BSAU108 1/4" ID Fuel Hose - single textile braid reinforcement and smooth black neoprene cover. 0.5" OD. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

NFH3/8 - -6 (3/8" bore) fuel hose- neoprene cover

From £6.30 (£7.56 inc. VAT @ 20%)

BSAU108 3/8" ID Fuel Hose - single textile braid reinforcement and smooth black neoprene cover 0.64" OD. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

NFH5/16 - -5 (5/16" bore) fuel hose- neoprene cover

From £5.90 (£7.08 inc. VAT @ 20%)

BSAU108 5/16" ID Fuel Hose - single textile braid reinforcement and smooth black neoprene cover. 0.58" OD. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SSFH1/4 - -4 (1/4" bore) fuel hose - stainless braid cover

From £16.96 (£20.35 inc. VAT @ 20%)

1/4" ID Stainless Steel Braided Fuel Hose (>8mpg). 0.45" OD. Less bulky than the BSAu108 compliant hose. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SSFH3/8 - -6 (3/8" bore) fuel hose - stainless braid cover

From £15.50 (£18.60 inc. VAT @ 20%)

3/8" ID Stainless Steel Braided Fuel Hose (<2mpg) 0.56" OD. Less bulky than the BSAu108 compliant hose. Priced PER METER

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SSFH5/16 - -5 (5/16" bore) fuel hose- stainless braid cover

From £12.46 (£14.95 inc. VAT @ 20%)

5/16" ID Stainless Steel Braided Fuel Hose (>2<8mpg). 0.49" OD. Less bulky than the BSAu108 compliant hose. Priced PER METER Can use BRCF1 brass ferrule ends

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SST01 - 1/4" OD Stainless Steel Tube

From £16.65 (£19.98 inc. VAT @ 20%)

6.35mm OD, 3mm ID seamless stainless steel tube. 20SWG (1mm wall thickness) ASTM269 316. Priced PER METER. Maximum single length for shipping is 2m.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SST02 - 5/16" OD Stainless Steel Tube

From £27.42 (£32.90 inc. VAT @ 20%)

8mm OD, 6mm ID seamless stainless steel tube. 20SWG (1mm wall thickness) ASTM269 316. Priced PER METER. Maximum single length for shipping is 2m.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SST03 - 3/8" OD Stainless Steel Tube

From £30.74 (£36.89 inc. VAT @ 20%)

9.6mm OD, 7.6mm ID seamless stainless steel tube. 20SWG (1mm wall thickness) ASTM269 316. Priced PER METER. Maximum single length for shipping is 2m.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

SST04 - 1/2" OD Stainless Steel Tube

From £32.40 (£38.88 inc. VAT @ 20%)

12.7mm OD, 10.7mm ID seamless stainless steel tube. 20SWG (1mm wall thickness) ASTM270 31. Priced PER METER. Maximum single length for shipping is 2m.

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

TFE3 - - 3 TFE hose

From £9.21 (£11.05 inc. VAT @ 20%)

Extruded Teflon tube with stainless steel single wire braid cover (1/8" bore) commonly used for braking systems. A high pressure hose with excellent fluid compatibility and a cover resistant to...

Comparable to other manufacturer part numbers - 600-03,

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

TFE3PVC - - 3 TFE hose with clear PVC cover

From £10.73 (£12.88 inc. VAT @ 20%)

Extruded Teflon tube with stainless steel single wire braid cover and clear PVC outer protective cover - cover must be cut back to take fittings. (1/8" bore) commonly used for braking systems. A...

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

TFE4 - - 4 TFE hose

From £10.74 (£12.89 inc. VAT @ 20%)

Extruded Teflon tube with stainless steel single wire braid cover (3/16" bore) commonly used for clutch systems. A high pressure hose with excellent fluid compatibility and a cover resistant to...

Flexolite - Fuel, Brake and Clutch Hose and Fittings - Fuel, Brake and Clutch Hose and Pipe
Product Image

TFE4PVC - - 4 TFE hose with clear PVC cover

From £15.62 (£18.74 inc. VAT @ 20%)

Extruded Teflon tube with stainless steel single wire braid cover and clear PVC outer protective cover - cover must be cut back to take fittings. (3/16" bore) commonly used for clutch systems. A...
