Oil Cooler and Filter Relocation Systems - Aquaplane engine oil cooler - Ford 8 & 10 hp and 100E

Name: Aquaplane engine oil cooler - Ford 8 & 10 hp and 100E
SKU: AP-6900
Price: 379.84 GBP
Availability: InStock

SKU: AP-6900

Aquaplane engine oil cooler - Ford 8 & 10 hp and 100E

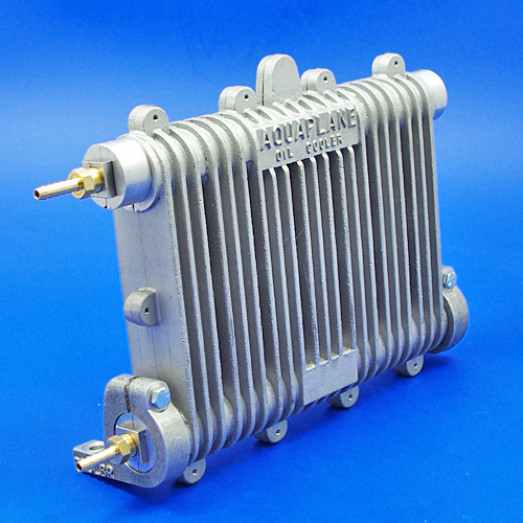

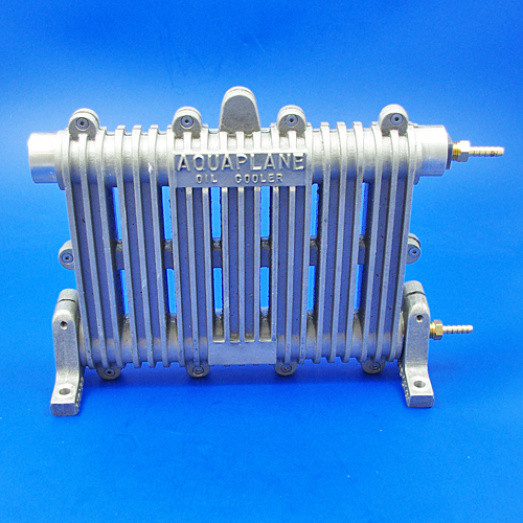

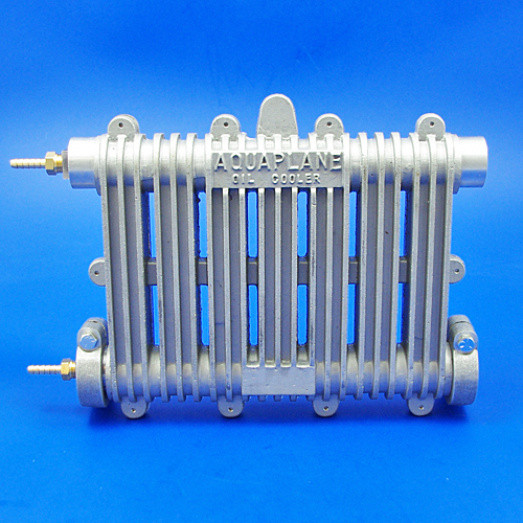

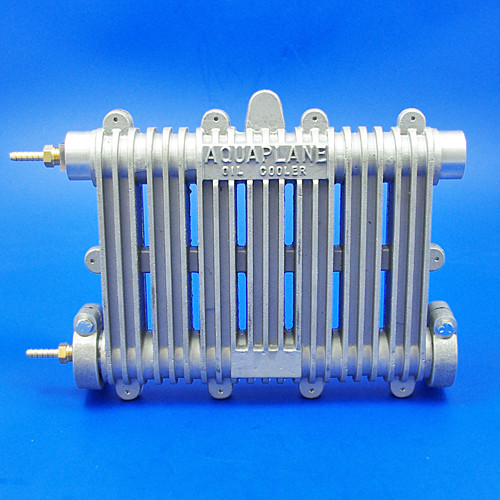

Cast aluminium oil cooler (as original Aquaplane pattern). 285mm wide, 230mm tall, 45mm deep, female 1/4 BSP inlet/outlet thread, mounting bracket 60mm tall with 85mm long base and 8mm bolt hole. requires AP-6520-F valve chest cover for use.

We supply two male BSP taper thread hose connections to fit into the inlet/outlet threads, onto which flexible pipe can be attached.
