Warm White & Red 12V LED Combined Stop, Tail & NP lamp - SBC BA15D fitting
12 x 3050 SMD Warm White LEDs and 6 x dual brightness 5050 LEDs for combined Number Plate Illumination, Stop and Tail lamp funtion. Multi direction bulb with 12 Volt application with equal pin BA15D base. 3000k warm white 360 degree light and bright RED colour temperature from 6 high power red LEDS.
Red and white LEDs illuminate for tail light/number plate illumination functions - RED light intensifies when the brake is applied. Good contrast between red stop and tail light outputs.

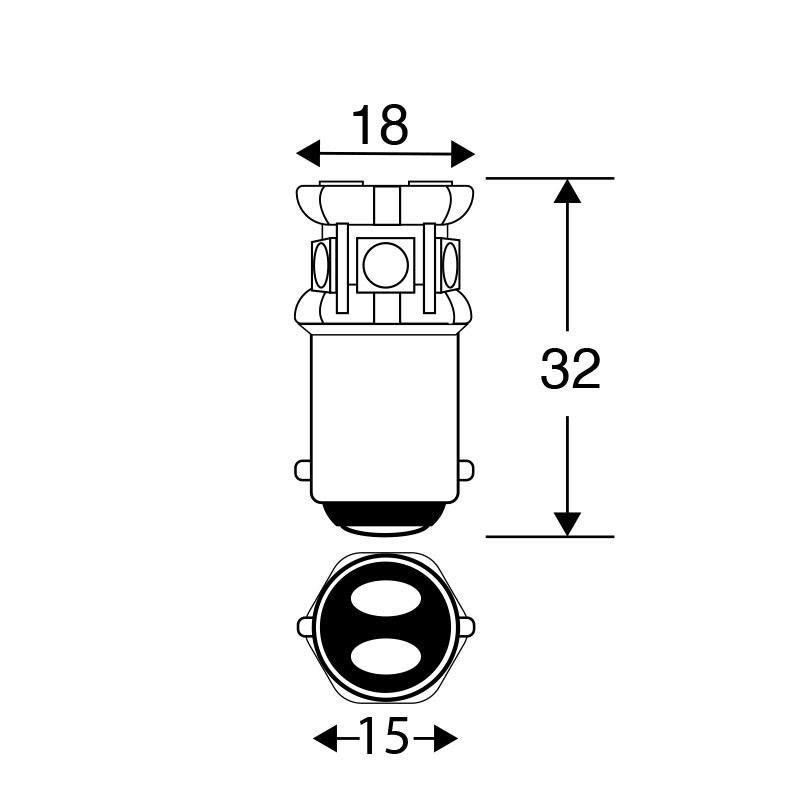

A great combination lamp. Accepts 9 to 50V input voltage so suitable for 12V and 24V NEGATIVE earth applications. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered electrical systems. 18mm maximum diameter, 32mm total bulb height.
The red light output is not quite as bright as the BAY15D part numbers (CSTLEDWWR-12Y, CSTLEDWWR-6NY and CSTLEDWWR-6PY) with their two cree LEDs behind a lens, but this is still a very bright, compact lamp, so a great option where space is limited.
This is the ideal LED combination conversion lamp for Lucas Type L582 lamps with the BA15D fitting.
|Warm White & Red
|Combined Stop, Tail & NP
