Ki-Gass hand primer pump

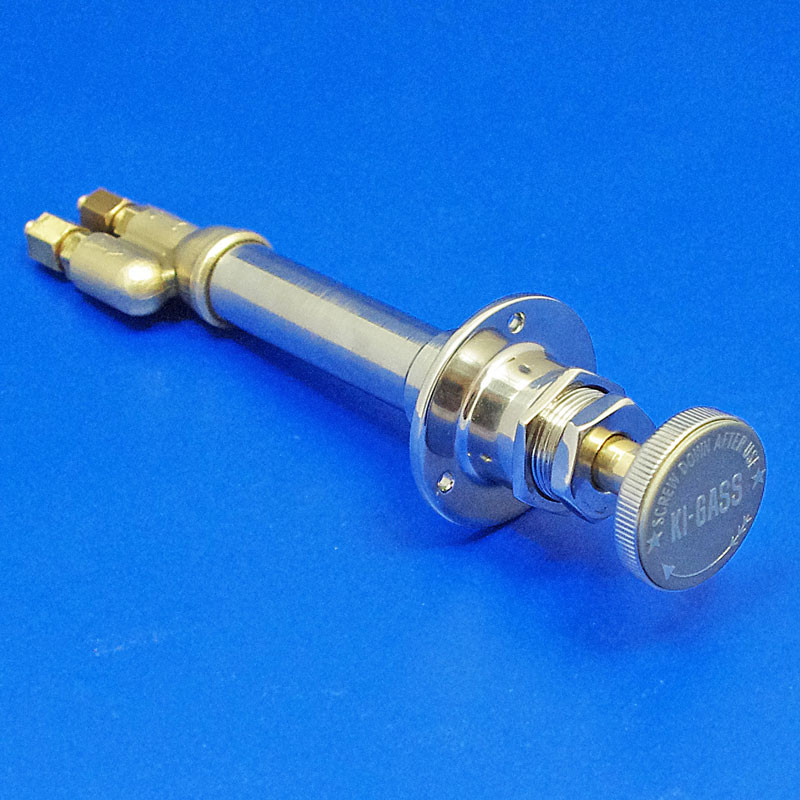

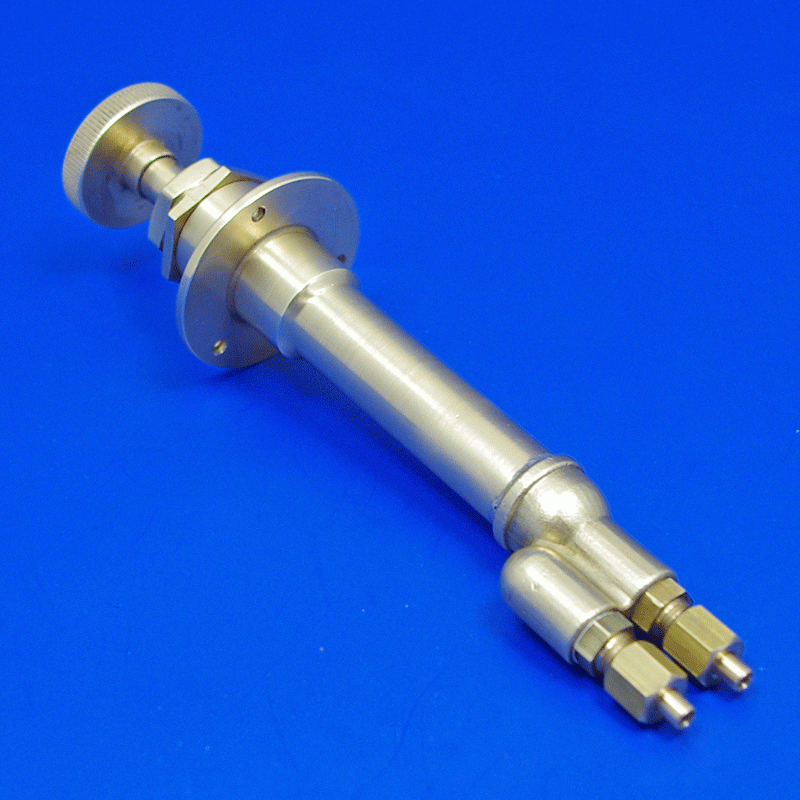

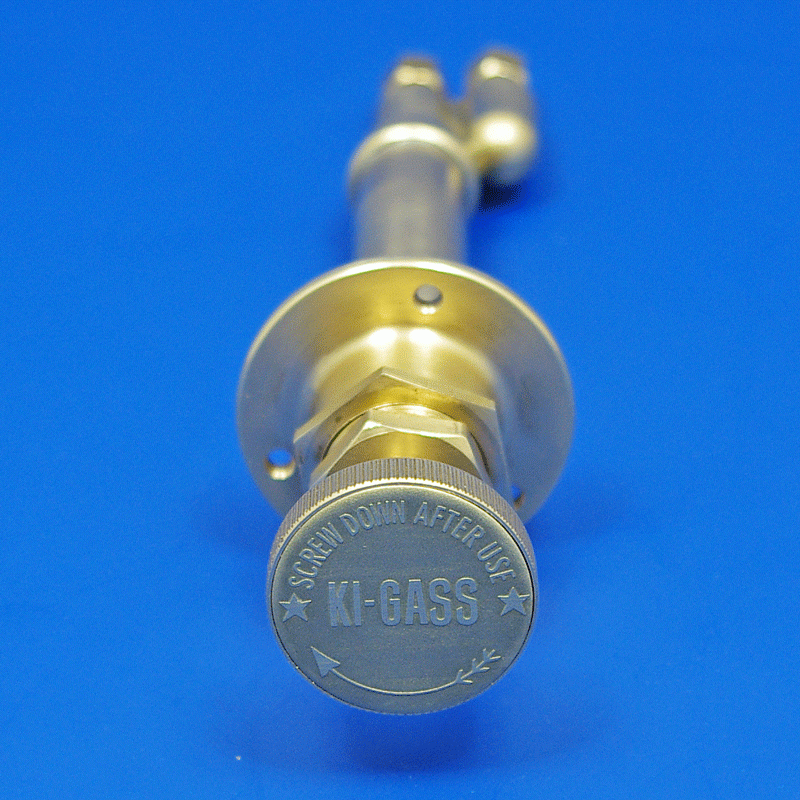

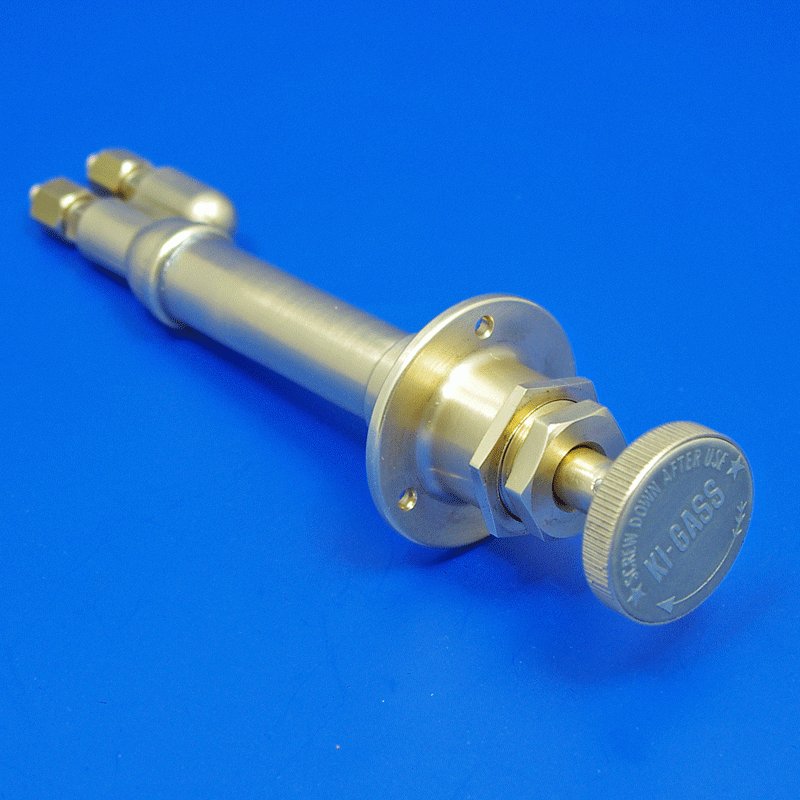

Re-manufactured Ki-Gass hand primer fuel pump. Supplied as shown. 44mm diameter mounting flange, wording KI-GASS SCREW DOWN AFTER USE, two stars and one arrow on engraved nickel silver disc, supplied with union nuts and solder nipples for 1/8" copper pipe, knurled operating knob 31.5mm diameter with a distance from mounting flange face to top of operating knob 45mm when screwed closed, 108mm when fully extended. Main body behind mounting flange 128mm long (including nuts and nipples) 26.5mm wide at widest point 12.7mm at narrowest.
Please note the engraved disc will be supplied with the pump as a separate part, so that the knob can be painted or powder coated if required, it can then be fitted with a suitable adhesive.
