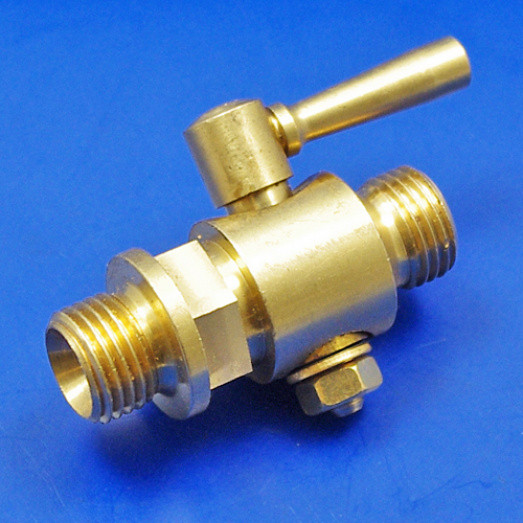

Fuel and Oil Taps - Straight in line tap - 1/4“ BSP threaded inlet and outlet

Straight in line tap - 1/4“ BSP threaded inlet and outlet

Straight in line tap with 1/4“ BSP threads on the inlet and outlet - both have a 60 degree seat for 1/4" BSP solder nut and nipple type fittings. Body length (including threads) 45mm and diameter 19mm. This tap is supplied bare, please order fittings as required separately. Solder type nut and nipples can be fitted to both ends of the tap as required. Please note that one end has a seating flange, which can be screwed into a tank with a folded copper washer.
